Description

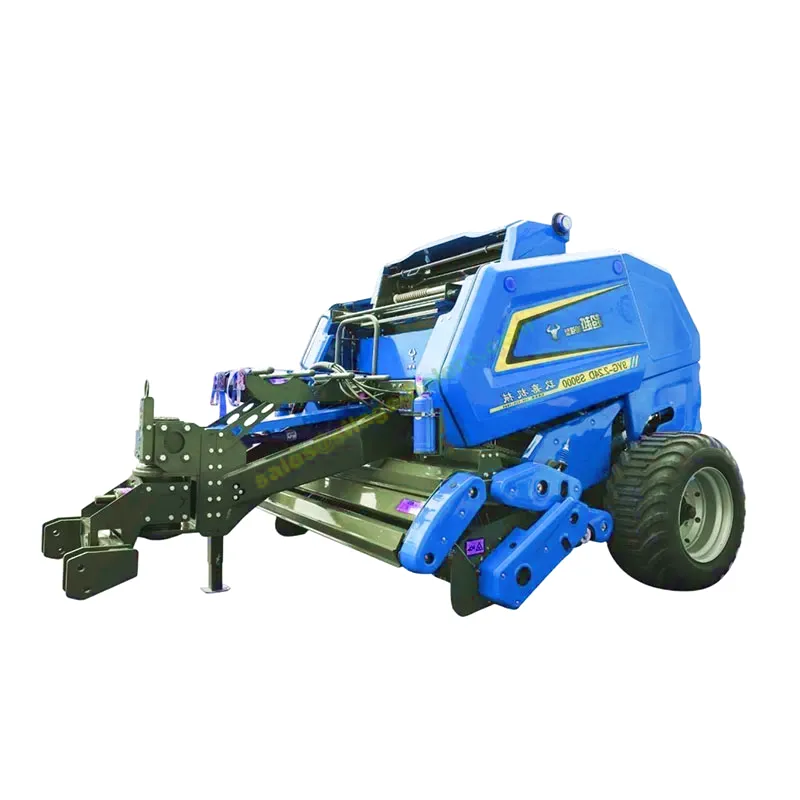

The 9YG-2.24D Round Baler (S9000 Beyond) is a premium, high-performance agricultural machine designed for large-scale hay, straw, and silage baling. This round baler, with its advanced features and innovative design, takes the traditional round baler to the next level, offering unmatched reliability, efficiency, and ease of use. Whether you’re baling hay for storage or silage for livestock feed, the 9YG-2.24D ensures that the job is done quickly, with excellent results and minimal downtime.
Technical Specifications
| Serial Number | Item | Unit | Specification |
|---|---|---|---|
| 1 | Model Name | / | 9YG-2.24D Round Baler (S9000 Beyond) |
| 2 | Hitching Method | / | Traction Type |
| 3 | Picking Width | mm | 2240 |
| 4 | Picker Structural Type | / | Spring-tooth Type |
| 5 | Feeder Structural Type | / | Rake Tooth + Roller Type |
| 6 | Compression Chamber Baling Mechanism Type | / | Roller Type |
| 7 | Compression Chamber Width | mm | 1400 |
| 8 | Compression Chamber Diameter | mm | Φ1200 |
| 9 | Number of Rolling Working Parts | pc | 18 (Rollers) |
| 10 | Rolling Roller Diameter | mm | Φ222 |
| 11 | Binding Method | / | Net Wrapping |
| 12 | Matching Power | kw | 55-100 |
| 13 | Structural Mass | kg | 4570 |
| 14 | Power Take-off Shaft Speed | r/min | 720 |
| 15 | Overall Dimension (Length×Width×Height) | mm | 4600×3010×2370 (Working State) |
| 16 | Bale Density Control | / | Sensor Control |
| 17 | Bale Size (Diameter×Width) | mm | Φ1300×1400 |
| 18 | Bale Density | Kg/m³ | 100-200 |
| 19 | Productivity | bales/h | 40~100 |
| 20 | Wheelbase | mm | 2600 |
| 21 | Operating Speed | Km/h | 5-35 |
| 22 | Net Specifications (Length×Width) | / | 2000×1.4m per Bale |
What is the 9YG-2.24D Round Baler (S9000 Beyond)?
The 9YG-2.24D Round Baler (S9000 Beyond) is a specialized piece of machinery used for gathering, compacting, and binding loose material like hay, straw, and silage into round bales. It works by taking the collected material, compressing it into cylindrical shapes, and wrapping them with twine or netting to keep them intact for easy storage, transport, and handling. The “S9000 Beyond” model offers an upgrade over traditional round balers, incorporating cutting-edge technology for superior performance, better crop handling, and reduced operational costs.
The 9YG-2.24D is designed to handle a wide variety of crops, including both dry hay and moist silage, making it a versatile choice for farmers who need a reliable and efficient baler for different agricultural operations. With features such as adjustable bale size, easy operation, and robust construction, it’s a must-have tool for those looking to improve their hay and silage production.
Key Features of the 9YG-2.24D Round Baler (S9000 Beyond)
- High-Performance Baling: The 9YG-2.24D Round Baler (S9000 Beyond) features an advanced intake and compression system, enabling it to handle large volumes of crop material with ease. The improved system ensures consistent and uniform bales, even in varying crop conditions, making the baler highly efficient in different farming environments.
- Adjustable Bale Size: One of the standout features of the 9YG-2.24D is its ability to adjust the size of the round bales. This flexibility allows the user to produce bales that are tailored to their storage and transport needs, whether the goal is to create small, manageable bales for easy handling or larger bales for long-term storage.
- Durable Construction: Built to last, the 9YG-2.24D is made with high-quality materials that withstand the stresses of daily use. It’s designed to operate in tough conditions, providing excellent reliability and minimizing downtime during the busy baling season.
- Advanced Wrapping System: The 9YG-2.24D comes with an upgraded wrapping system that tightly secures the round bales using twine or netting. This ensures that the bales remain intact and are protected from moisture, dirt, and pests, making them perfect for long-term storage or transportation.
- Intuitive Controls: Despite its advanced features, the 9YG-2.24D is designed to be user-friendly. The controls are intuitive, and the machine offers easy-to-read displays and simple operation, allowing farmers to focus on getting the job done without unnecessary complexity.
- Reduced Maintenance and Cost: The 9YG-2.24D’s design minimizes wear and tear on its components, reducing the need for frequent maintenance. Its high-quality construction and efficient operation translate into cost savings over the machine’s lifespan, making it a valuable long-term investment for any farming operation.
- Fuel Efficiency: The S9000 Beyond model incorporates energy-efficient technology that reduces fuel consumption during operation. This helps farmers save on fuel costs while increasing productivity, making the 9YG-2.24D a cost-effective option for large-scale baling.
- Versatility: Whether you’re working with hay, straw, or silage, the 9YG-2.24D Round Baler can handle a wide range of crops. Its ability to bale both dry and moist material makes it an excellent choice for diverse farming needs, from traditional hay baling to silage production for livestock feed.
Why Choose the 9YG-2.24D Round Baler (S9000 Beyond)?
The 9YG-2.24D Round Baler (S9000 Beyond) offers top-of-the-line performance, durability, and efficiency, making it the ideal choice for farmers who need to bale large volumes of hay, straw, or silage. Its advanced features, including customizable bale sizes, an upgraded wrapping system, and a fuel-efficient design, set it apart from other round balers on the market. Whether you’re looking to increase productivity, reduce maintenance costs, or improve bale quality, the 9YG-2.24D delivers outstanding value for your investment. With its superior engineering and user-friendly operation, this baler is built to meet the demands of modern farming.
FAQs
1. What is a round baler?
A round baler is a machine used to collect, compress, and bind loose crop material such as hay, straw, or silage into compact cylindrical bales. These bales are easier to store, transport, and handle compared to loose material, and the round baler helps improve efficiency on the farm by automating the baling process.
2. How does the 9YG-2.24D differ from other round balers?
The 9YG-2.24D Round Baler (S9000 Beyond) stands out due to its advanced features, such as adjustable bale size, an upgraded intake system, and a more efficient wrapping system. It is designed for higher performance and greater durability, ensuring superior bale quality with minimal maintenance and reduced operational costs.
3. What is the maximum bale size that the 9YG-2.24D can create?
The 9YG-2.24D can produce a wide range of bale sizes, with the largest being significantly larger than typical round bales. The adjustable bale size feature allows the operator to customize the size based on storage and transport needs, offering flexibility for various applications.
4. Can the 9YG-2.24D handle wet silage?
Yes, the 9YG-2.24D Round Baler is capable of baling wet silage in addition to dry hay and straw. The machine is designed to handle moist materials, compressing them into tightly bound bales that preserve the silage’s moisture content, making it ideal for livestock feed storage.
5. How easy is it to operate the 9YG-2.24D Round Baler?
The 9YG-2.24D is designed with ease of use in mind. The machine features intuitive controls and displays, making it accessible even for operators with minimal experience. The user-friendly interface simplifies the baling process, ensuring high productivity and reducing the learning curve.
6. How often should I maintain the 9YG-2.24D Round Baler?
Routine maintenance for the 9YG-2.24D Round Baler involves regularly checking the cutting and wrapping systems, lubricating the moving parts, and ensuring that all components are functioning properly. The machine’s durable design minimizes maintenance needs, but regular cleaning and inspection will ensure it continues to perform at its best.
7. What is the fuel efficiency of the 9YG-2.24D?
The 9YG-2.24D is built with energy-efficient technology that reduces fuel consumption, helping farmers save on operating costs. Its efficient design means that you can get more work done with less fuel, making it an environmentally friendly and cost-effective choice for large-scale baling.
